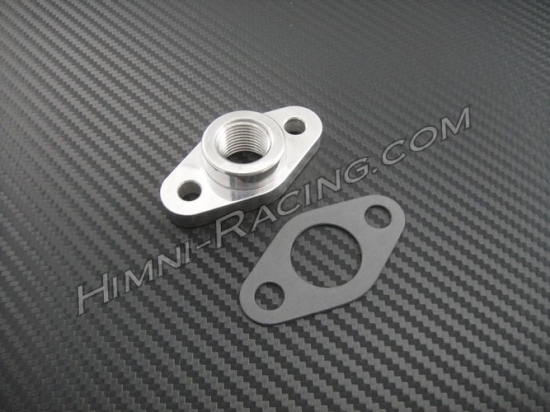

LARGE GT Series Oil Return Flange & Gasket GT45/47/55

Price :
$21.95
  • Model: W15A035-1
  • Manufactured by: Himni Racing

DESCRIPTION

Made In USA. Himni Racing Extra Large T-Series, S-Series & Big GT Series turbo oil return/drain/outlet adapter flange & gasket set. For use with all the large fame turbochargers listed below. Machined from T6 air craft grade aluminum to be lightweight, durable & to provide an exact fit with leak-free sealing. Highest quality available. The center oil drain port is threaded with a 1/2" female NPT for use with any standard 1/2" NPT fitting. Added surface area provides the ideal design for extra large turbos.

- Brand: HIMN'I Racing
- Design: Large T/S/GT Oil Return Flange & Gasket.
- Center Port Size: 1/2" Female NPT
- Bolt Spacing: 50.80mm from the center of one hole to the center of the other. (on center)
- Bolt Hole size: For use with standard 8mm bolts/studs or SAE equivalent.
- Material Type: T6 Billet aluminum
- Finish: Excellent, Raw, Smooth Machined
- Made In: United States (USA)
- Includes HR Exclusive 1 Year Warranty. Covers materials and craftsmanship to be free of any defects. Guaranteed to not otherwise fail.

Fits extra large T Series, S Series & GT turbos including:
T80, T88, GT45, GT45R, GT4508, GT4508R, GTX45, GT45R, GTX45, GT4508, GTX4508R, GT47, GT47R, GT4708, GT4708R, GTX4708R, GT4718, GT4781R, GT55, GT55R, GT5518, GT5518R, GT5533, GT5533R, S400SX3, S467 (S400SX3-67mm), S471 (S400SX3-71mm), S474 (S400SX3-74mm, S475 (S400SX3-75mm), S476 (S400SX3-76mm), S480 (S400SX3-80mm), S482 (S400SX3-82mm, S400SX4, S400SX4-71mm, S400SX4-75mm, S400SX4-80mm
