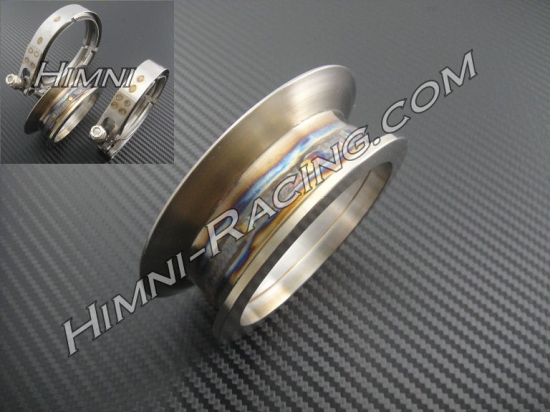

Borg Warner S200, S300 V-Band ADAPTER Kit- Stainless

Price :
Starting at: $66.00

  • Model: R1525, R1530, R1535
  • Manufactured by: Himni Racing


Made In USA, Himni Racing S200/S300 V-Band Flange Adapter/Converter kit. This kit adapts the Borg Warner S200 & S300 series turbos' to your existing v-band exhaust. Available in a few different versions depending on what flange is on your exhaust now... See below. Direct bolt-on, no cutting or welding required. High quality, leak-free sealing, durable, made in the USA. This item is normally always in stock & ships within 1-72 hours.

Adapter Side #1, Turbo Side:
Fits all BorgWarner S200SX & S300SX series turbos' with a 4.21" OD tapered/beveled V-band Marmon exhaust downpipe outlet. Including:
S200, S200SX, S246 (S200SX-46), S250 (S200SX-50), S251 (S200SX-51), S256 (S200SX-56)
S300, S300SX3, S360 (SX300SX-60), S363 (S300SX-63), S366 (S300SX-66)
Or by part number, fits the following:
177258, 177267, 177329, 177257, 177268, 177281, 177275, 177272, 177280, 177283, 177284 & more.

Adapter Side #2, Your Exhaust/Down Pipe Side:
Available in a few different sizes based on what size/type of V-band exhaust/downpipe you're currently using. Select from menu. Options are:
- A: For 2.50" V-Band (2.50" Inch I.D. / 3 1/16" O.D. flat face)
- B: 3" V-Band With 3.75" (3 3/4" / 95mm) Outer Diameter, Flat Face. (Standard/ Most Common 3 Inch size)
- C: 3" V-Band With 3.625" (3 5/8" / 92mm) Outer Diameter, Flat Face. (Slightly Smaller than above)
- C: 3.50" V-Band With 4.25" (4 1/4" / 107.95mm) Outer Diameter, Flat Face.

- Brand: HIMN'I Racing
- Design: S200/S300 V-Band Flange Adapter/Converter.
- Adapter Side #1: BorgWarner 4.21" Inch OD V-Band, tapered.
- Adapter Side #2: 2.5", 3" or 3.5" V-band, Flat Face.
- Overall Thickness/Height: 1.25" (1 1/4")
- Material Type: Mild Carbon or Stainless Steel (select from menu)
- Clamp: Extreme duty, stainless steel w/ high heat lock nut.
- Finish: Excellent, Raw, Rainbow TIG welded, Smooth surface for proper sealing
- Made In: United States (USA)
- Includes HR Exclusive 1 Year Warranty. Covers materials and craftsmanship to be free of any defects. Guaranteed to never crack, warp or otherwise fail.

:::NOTE:::NOTE::: Not for use with BW S200 & S300 series turbos that have a third party flat face "Ruined" turbine downpipe discharge outlet. If the back of your turbine housing has a flat v-band matting surface (rather than slightly tapered/angled) then you need Part # R12146 found on our catalog. Flat face v-bands on S200/S300 turbos are NOT genuine Borg Warner & no longer unitize BW's superior tapered flange design. If you ordered your turbo from us, your housing has not been Ruined & this item is the correct flange kit for you.

HR V-Band Flanges, adapters & Clamp Kits are of the highest quality on the market today. Found on top race cars around the world, each vband mounting flange is precisely machined in the USA from raw USA billet stock to insure a perfect fit and leak-free seal. HR V-Flanges are designed to exceed requirements in the most demanding conditions including severe race, high heat & extreme stress applications. A huge verity of designs & sizes are available ranging from 1.50"-5.00". Made to industry fitment standards & torture tested with no warping, braking or loosing their seal.

Don't be fooled into a cheap, low quietly anything. Even something as simple as a flange or adapter are not all created equal. Side effects of a low quality flange are incorrect fitment, sloppy fit, doesn't fit, leaking, wrapping, stripping, cracking, rusting SS, barbs, rough textured finish, "plastic-ish" metal, difficult to weld, cracking welds, etc. Use an HR flange to insure the very highest of quality.
