Compressor INLET Adapter Flange 2.5"- GT28R GT2860R


Please Choose:

Add to Cart:

  • Model: R12A012
  • Manufactured by: Himni Racing

Made In The USA

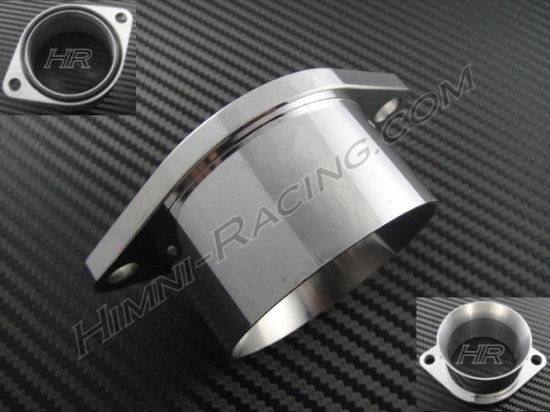

HR 2 Bolt TO Slip-On compressor inlet adapter flange for Garrett GT28R/ GT2860R turbo. Available in 3 different slip-on inlet sizes. Select from 1.75", 2.00" or 2.5" OD. Used to convert 2 bolt mounting to a standard slip-on air intake pipe connection. Use with silicone coupler. Machined from billet aluminum to be lightweight & durable. The opening is smoothly tapered for maximum flow. Includes reusable o-ring to provide a leak-free seal.

Common 2 hole mounting pattern measures 3 3/8" (about 86mm) apart, center to center. Fits many turbos including Garrett, GT28, GT28R, GT2560R, GT28RS, etc. Order Turbo/ CHRA part numbers 466541-1, 466541-1, 446179-12, 446179-38, 707160-7, 446179-54

- Brand: HIMN'I Racing
- 2 Bolt TO Slip-On compressor inlet adapter GT28R/ GT2860R.
- Adapter Side #1: 2 Bolt w/ O-ring
- Adapter Side #2: Slip On
- Bolt Spacing: 3 3/8" (about 86mm) apart measured from the center of one hole to the center of the other.
- Bolt Hole size: For use with standard 8mm or SAE equivalent
- Overall Height: 1.25"
- Material Type: T6 Aircraft grade billet aluminum
- Finish: Excellent, Raw, Smooth surface for proper sealing
- Manufactured Tolerances: 0.001
- Made In: United States (USA)
- Includes HR Exclusive 1 Year Warranty. Covers materials and craftsmanship to be free of any defects. Guaranteed to never crack, warp or otherwise fail.

Also see our 3" Race version for the ultimate in flow.
